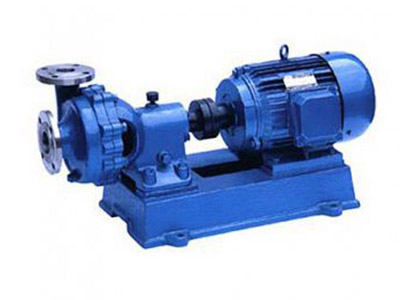

AFB耐腐蝕離心泵
FB不銹鋼化工泵具有性能可靠、密封性好,造型美觀,使用檢修方便等好處。
?FB耐腐蝕離心泵主要用途：此泵廣泛應用于化工、石油、冶金、輕工、合成纖維、環保、食物、醫藥等行業。為進步產品質量、減少跑、冒、滴、漏,防止污染,有著很大的作用。此泵與輸送介質接觸的過流部份零件,均采用1Cr18Ni9Ti材料制造。?
AFB不銹鋼耐腐蝕離心泵是在F型耐腐蝕泵的基礎上改進設計的,均采用新型的付葉輪動力軸封密封裝置,屬單級單吸懸臂式耐腐蝕離心泵。可用于輸送不含固體顆粒,有侵蝕性液體,被輸送介質溫度為-30℃～130℃,泵入口壓力不大于2kg/cm2。 FB耐腐蝕泵常用于不含有固體顆粒介質,介質溫度為-10℃～110℃,入口壓力不大于2kg/cm2。
耐腐蝕離心泵型號意義
100AFB-40
100代表泵吸入口徑
A代表付葉輪單面密封
F代表單級單吸懸臂式耐腐蝕離心泵
B代表泵與輸送介質接觸過流部分為不銹鋼1Cr18Ni9Ti制造
FB不銹鋼泵流量、揚程電機功率等性能參數表
型 號 | 流量Q | 揚程H | 轉速n | 效率(%) | 軸功率 | 配用功率 (Kw) | 汽蝕余量 | |
(m 3 /h) | (L/s) | |||||||
25FB-16 | 3.6 | 1 | 16 | 2900 | 33 | 0.48 | 1.1 | 4.0 |
25FB-16A | 3.27 | 0.91 | 12.5 | 2900 | 34 | 0.34 | 0.75 | 4.0 |
25FB-25 | 3.6 | 1 | 25 | 2900 | 30 | 0.82 | 1.5 | 4.0 |
25FB-25A | 3.27 | 0.91 | 40 | 2900 | 31 | 0.57 | 1.1 | 4.0 |
25FB-40 | 3.6 | 1 | 40 | 2900 | 23 | 1.71 | 3 | 4.0 |
25FB-40 | 3.27 | 0.91 | 33.5 | 2900 | 24 | 1.21 | 2.2 | 4.0 |
40FB-16 | 7.2 | 2 | 16 | 2900 | 44 | 0.71 | 1.5 | 4.0 |
40FB-16A | 6.55 | 1.82 | 12 | 2900 | 46.7 | 0.5 | 1.1 | 4.0 |
40FB-20 | 7.2 | 2 | 20 | 2900 | 42 | 0.93 | 1.5 | 4.0 |
40FB-25 | 7.2 | 2 | 25 | 2900 | 39 | 1.26 | 2.2 | 4.0 |
40FB-25A | 6.55 | 1.82 | 20.5 | 2900 | 40 | 0.94 | 1.5 | 4.0 |
40FB-40 | 7.2 | 2 | 40 | 2900 | 32 | 2.45 | 3 | 4.0 |
40FB-40A | 6.55 | 1.82 | 32 | 2900 | 33.5 | 1.73 | 2.2 | 4.0 |
40FB-63 | 7.2 | 2 | 63 | 2900 | 27 | 5.42 | 7.5 | 4.0 |
40FB-63A | 6.72 | 1.87 | 56 | 2900 | 29 | 3.75 | 5.5 | 4.0 |
50FB-16 | 14.4 | 4 | 16 | 2900 | 56 | 1.09 | 2.2 | 3.5 |
50FB-16A | 13.1 | 3.64 | 12 | 2900 | 57 | 0.81 | 1.5 | 3.5 |
50FB-25 | 14.4 | 4 | 25 | 2900 | 52 | 1.83 | 4 | 3.5 |
50FB-25A | 13.1 | 3.64 | 20 | 2900 | 51.5 | 1.42 | 3 | 3.5 |
50FB-40 | 14.4 | 4 | 40 | 2900 | 46 | 3.32 | 5.5 | 3.5 |
50FB-40A | 13.1 | 3.64 | 32.5 | 2900 | 45 | 2.62 | 5.5 | 3.5 |
50FB-63 | 14.4 | 4 | 63 | 2900 | 39 | 6.16 | 11 | 3.5 |
50FB-63A | 13.1 | 3.64 | 54.5 | 2900 | 38 | 5.24 | 7.5 | 3.5 |
65FB-25 | 28.8 | 8 | 25 | 2900 | 62 | 3.16 | 5.5 | 3.5 |
65FB-25A | 26.2 | 7.28 | 20 | 2900 | 62 | 2.36 | 4 | 3.5 |
65FB-30 | 28.8 | 8 | 30 | 2900 | 60.5 | 3.89 | 7.5 | 3.5 |
65FB-30A | 26.2 | 7.28 | 25 | 2900 | 61 | 2.79 | 5.5 | 3.5 |
65FB-40 | 28.8 | 8 | 40 | 2900 | 57.5 | 5.46 | 11.5 | 3.5 |
65FB-40A | 26.2 | 7.28 | 32 | 2900 | 58 | 4 | 7.5 | 3.5 |
65FB-64 | 28.8 | 8 | 64 | 2900 | 52.5 | 9.57 | 15 | 3.5 |
65FB-64A | 26.2 | 7.28 | 55 | 2900 | 51.5 | 7.82 | 7.5 | 3.5 |
80FB-15 | 54.4 | 15 | 15 | 2900 | 69 | 3.2 | 5.5 | 3.0 |
80FB-15A | 49.1 | 13.65 | 11.5 | 2900 | 69 | 2.62 | 4 | 3.0 |
80FB-24 | 54.4 | 15 | 24 | 2900 | 68 | 5.19 | 7.5 | 3.0 |
80FB-24A | 49.1 | 13.65 | 19 | 2900 | 68 | 3.94 | 7.5 | 3.0 |
80FB-38 | 54.4 | 15 | 38 | 2900 | 66.5 | 8.41 | 15 | 3.0 |
80FB-38A | 49.1 | 13.65 | 30.5 | 2900 | 66.5 | 6.34 | 11 | 3.0 |
80FB-60 | 54.4 | 15 | 60 | 2900 | 62.8 | 14.06 | 22 | 3.0 |
80FB-60A | 49.1 | 13.65 | 52 | 2900 | 62.5 | 11.56 | 18.5 | 3.0 |
100FB-23 | 100.8 | 28 | 23 | 2900 | 73 | 8.65 | 15 | 3.0 |
100FB-23A | 91.8 | 25.5 | 17.5 | 2900 | 73 | 6.51 | 11 | 3.0 |
100FB-37 | 100.8 | 28 | 37 | 2900 | 73 | 13.9 | 22 | 3.0 |
100FB-37A | 91.8 | 25.5 | 29 | 2900 | 70.5 | 11 | 18.5 | 3.0 |
100FB-57 | 100.8 | 28 | 57 | 2900 | 70.5 | 22.2 | 37 | 3.0 |
100FB-57A | 91.8 | 25.5 | 52 | 2900 | 70.5 | 18.77 | 37 | 3.0 |
150FB-22 | 190.8 | 53 | 22 | 2900 | 77 | 14.86 | 22 | 2.5 |
150FB-22A | 173.5 | 48.2 | 17.5 | 2900 | 78 | 10.6 | 18.5 | 2.5 |
150FB-35 | 190.8 | 53 | 35 | 2900 | 76 | 13.94 | 37 | 2.5 |
150FB-35A | 173.5 | 48.2 | 28 | 2900 | 76 | 17.42 | 30 | 2.5 |
150FB-56 | 190.8 | 53 | 56 | 2900 | 76 | 38.3 | 55 | 2.5 |
150FB-56A | 173.5 | 48.2 | 50 | 2900 | 76 | 32.1 | 37 | 2.5 |
